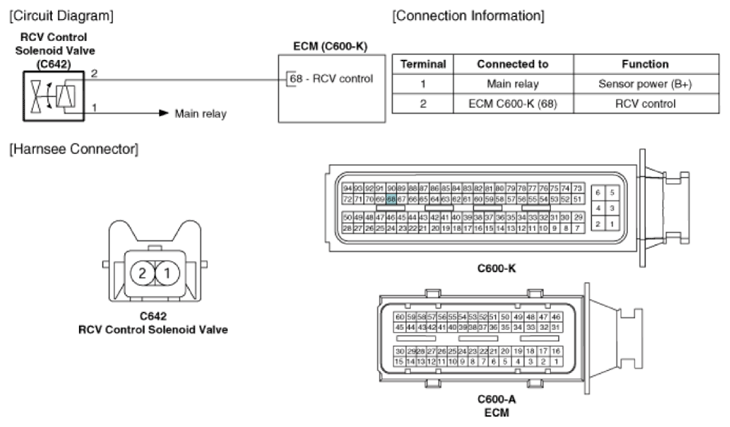

Home >> Hyundai >> 2020 >> Elantra Sport >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> RCV Control Solenoid Valve >> Schematic Diagrams >> Circuit Diagram
