Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the canister assembly.

    (Refer to Emission Control System - "CANISTER ")

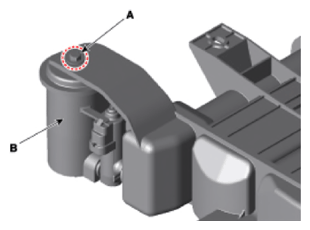

  3. Remove the installation bolt (A), and then remove the air filter (B).
    G14081630Courtesy of HYUNDAI MOTOR AMERICA

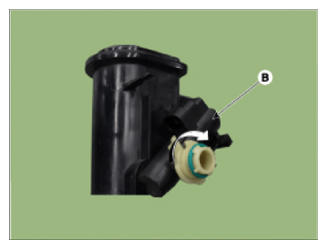

  4. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow shown in the figure.
    G14081631Courtesy of HYUNDAI MOTOR AMERICA
    G14081632Courtesy of HYUNDAI MOTOR AMERICA
  5. Install a new fuel tank air filter in accordance with the reverse order.
