Home >> Hyundai >> 2020 >> Elantra Eco >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Double Clutch Transmission Control System - 1.4L >> Shift Cable >> Components And Components Location >> Components

Components And Components Location: Components

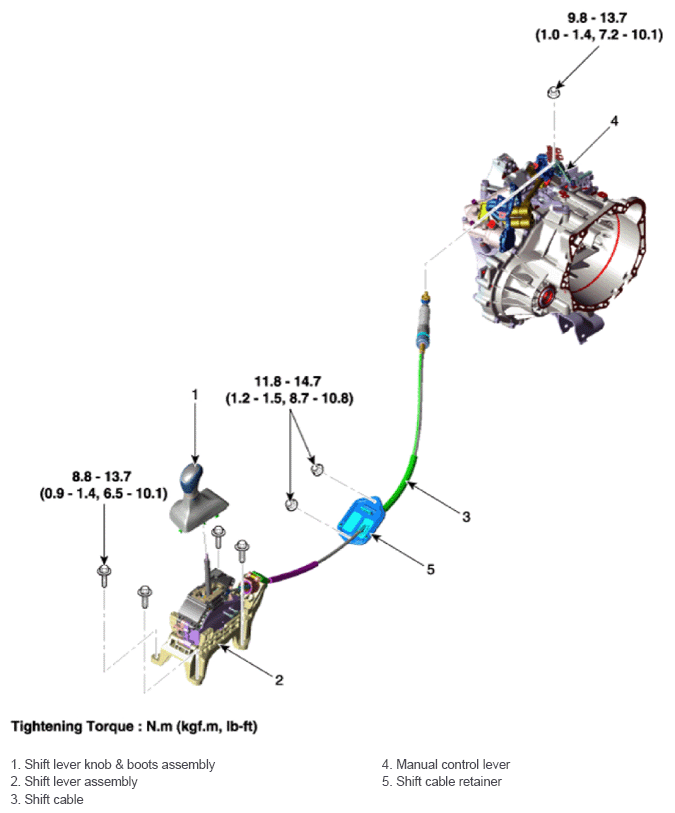

Fig 1: Shift Cable Components Location With Torque Specifications

G14116986

Courtesy of HYUNDAI MOTOR AMERICA
