Home >> Hyundai >> 2020 >> Elantra Eco >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Idle Stop & Go (ISG) System - 1.4L >> Components And Components Location >> Components Location

Components Location

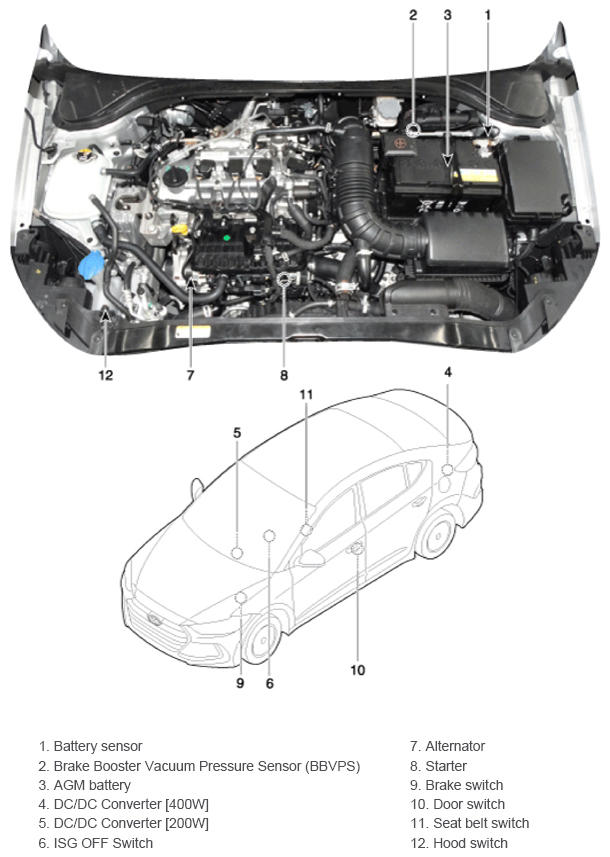

G14116631Courtesy of HYUNDAI MOTOR AMERICA

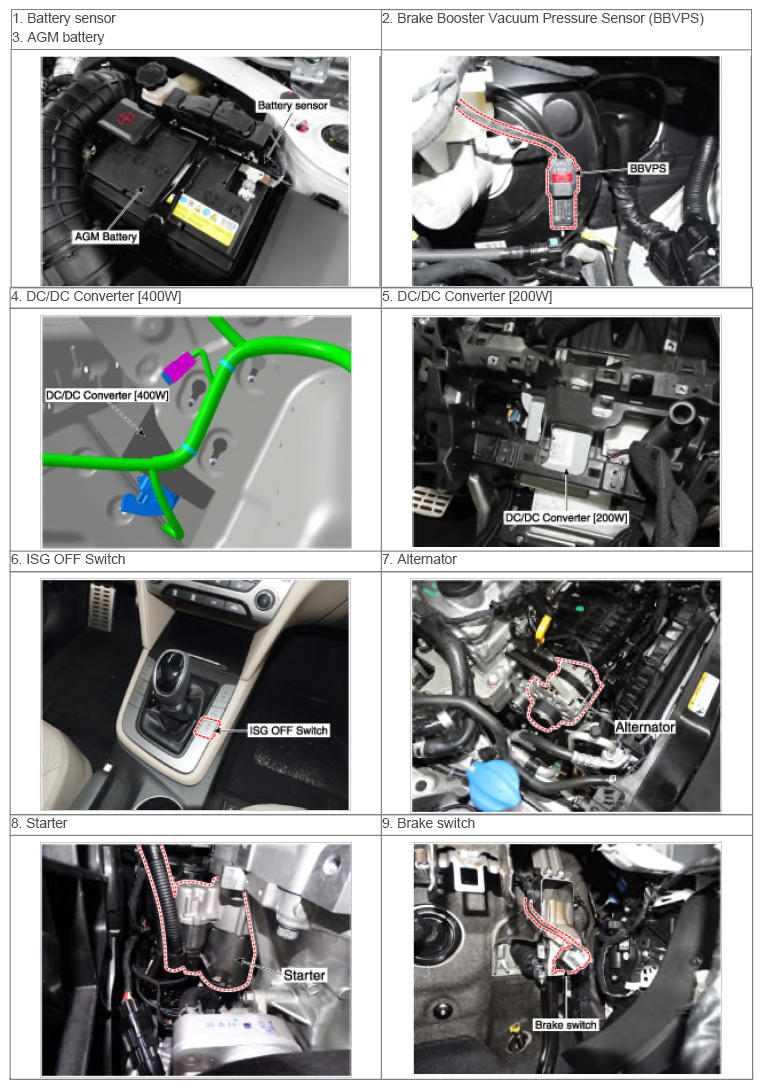

G14116632Courtesy of HYUNDAI MOTOR AMERICA

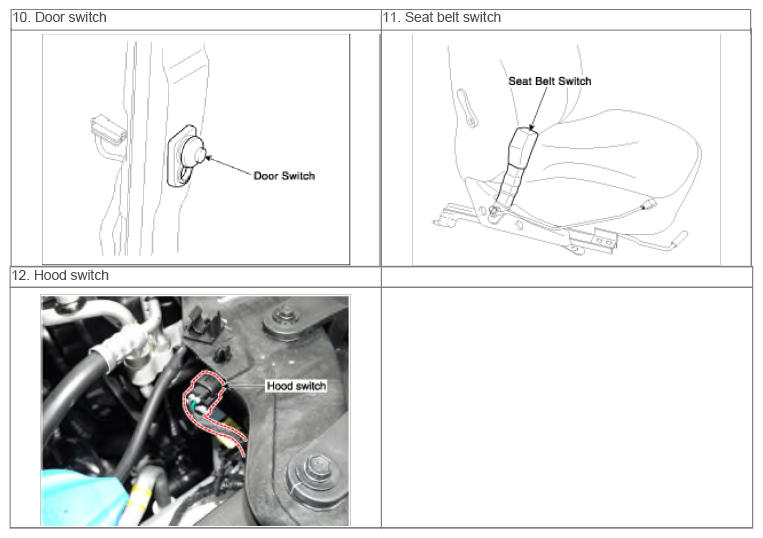

G14116633Courtesy of HYUNDAI MOTOR AMERICA
