Bank 1/Sensor 2

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

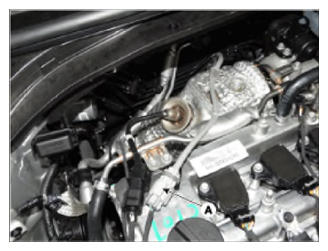

  2. Disconnect the connector (A), and then remove the sensor (B).
G14116571Courtesy of HYUNDAI MOTOR AMERICA
G14116572Courtesy of HYUNDAI MOTOR AMERICA
