Repair Procedures: Removal
- Raise the vehicle, and make sure it is securely supported.

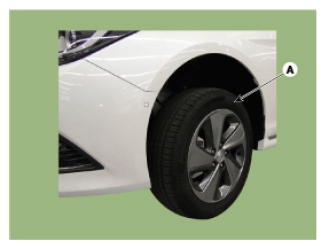

- Remove the front wheel and tire (A) from front hub.
Tightening Torque:
88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

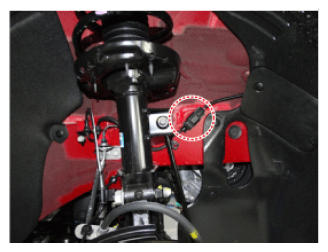

NOTE: Be careful not to damage to the hub bolts when removing the front wheel and tire (A). - Remove the front wheel speed sensor mounting bolt (A).
Tightening Torque:
8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)
- Remove the front wheel speed sensor cable mounting bolt (A).
Tightening Torque
Shock absorber:
8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)
Body: 19.6 ~ 29.4 N.m (2.0 ~ 3.0 kgf.m, 14.5 ~ 21.7 lb-ft)
- Disconnect the front wheel speed sensor connector, then remove the front wheel speed sensor.
- Installation is the reverse of removal.
