Components And Components Location: Components

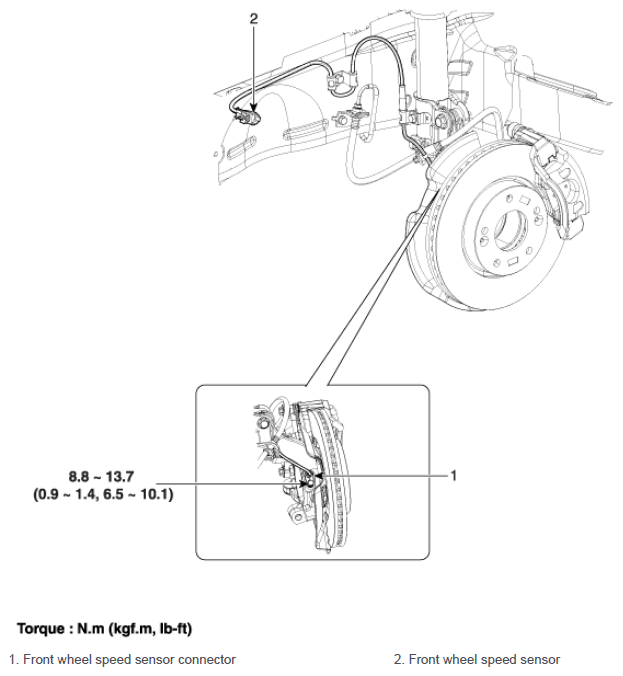

Fig 1: Locating Front Wheel Speed Sensor Components With Torque Specification

G12794258

Courtesy of HYUNDAI MOTOR AMERICA
