[Driver Power Window Module (IMS, Front Safety)]

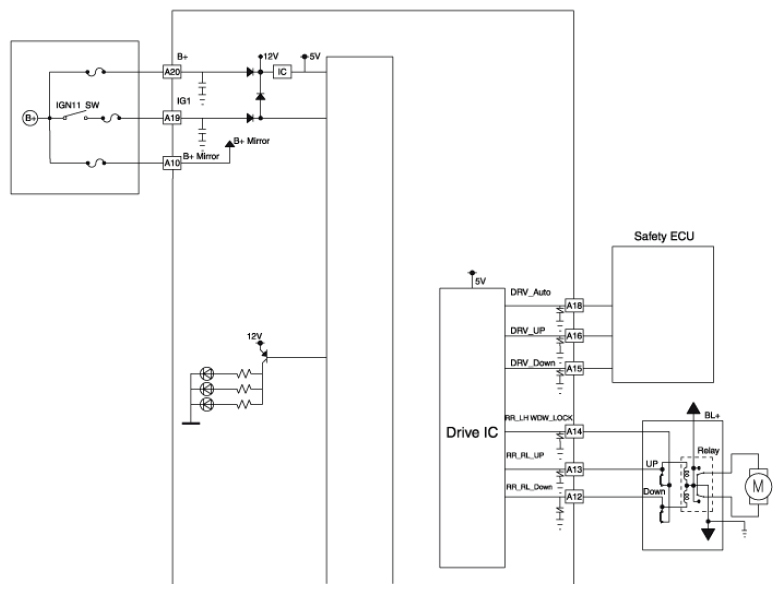

G12810247Courtesy of HYUNDAI MOTOR AMERICA

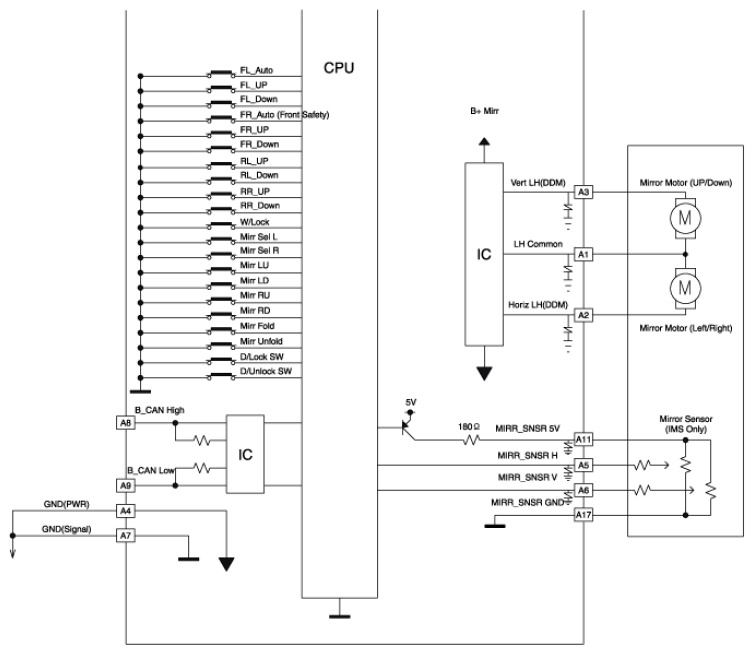

G12810248Courtesy of HYUNDAI MOTOR AMERICA
