Trunk Antenna

  1. Disconnect the negative (-) battery terminal
  2. Remove the rear transverse trim.

    (Refer to "TRUNK TRIM ")

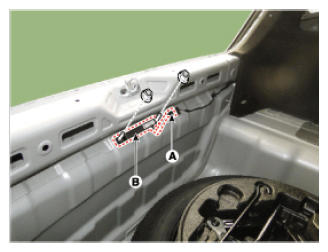

  3. Remove the trunk antenna (B) after disconnect the connector (A) and loosening the mounting nuts.
    G12794935Courtesy of HYUNDAI MOTOR AMERICA
