Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the Front View Camera Unit cover (A).

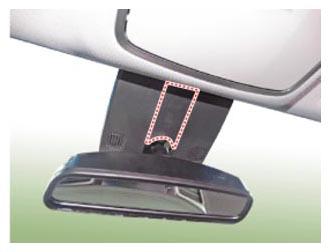

    G12811395Courtesy of HYUNDAI MOTOR AMERICA

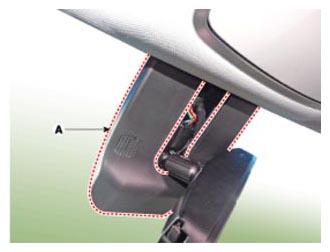

    G12811396Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the Front View Camera Unit connector (A), and then remove the multi function camera (B).

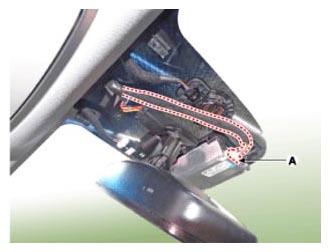

    G12811397Courtesy of HYUNDAI MOTOR AMERICA

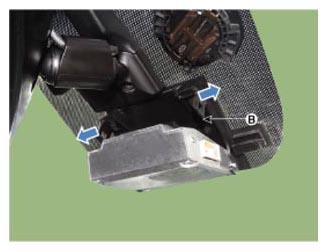

    G12811398Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When separate the fixed points, be careful not to damage it.
