Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
- To install, reverse the removal procedures.NOTE:

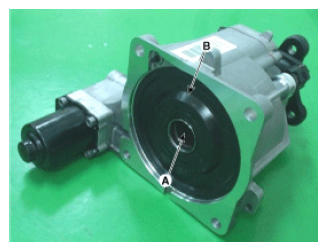

- Smear the splines (A) with molybdenum type high pressure grease.
- When install the coupling, be careful not to damage the oil seal (B).
- After replacing the coupling, reset the 4WD ECU's clutch learning using the GDS tool.
(Refer to 4WD Control System - "REPAIR PROCEDURES ")
