Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition OFF switch and the disconnect the negative (-) battery cable.
  2. Remove the battery and battery tray.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

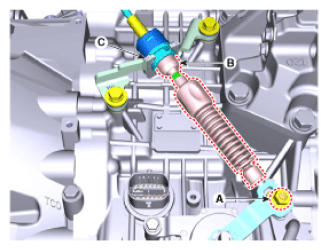

  4. Loosen the nut (A) from the manual control lever.
  5. Remove the shift cable (B) from the shift cable bracket (C).
    G12992488Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

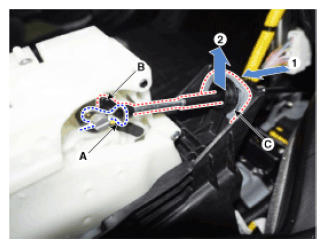

  7. Remove the snap pin (A).
  8. Disconnect the cable eye end (B) from the shift lever.
  9. Disconnect the cable socket (C) from the shift lever.
    G12992489Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the airbag module.

    (Refer to Restraint - "AIRBAG MODULE ")

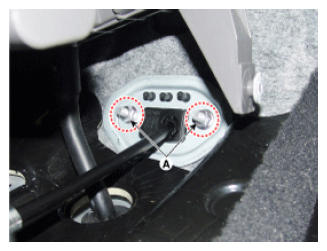

  11. Loosen the retainer mounting nuts (A).
  12. Remove the shift cable by pulling it toward the interior.
G12992490Courtesy of HYUNDAI MOTOR AMERICA
