EWAG Position Sensor
WARNING: This page is about a different variant/trim than selected.

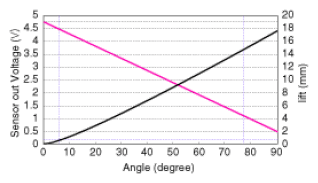

| Position |
Output Voltage [V] |
Operating Angle [°] |
Range of Rod [mm], reference |
| Mechanical Close end stop Position (MCP) |
4.8 |
0 |
0 |
| Electrical Close end stop Position (ECP) |
4.2 |
12 |
1.8 |
| Electrical Open end stop Position (EOP) |
1 |
79 |
16 |
| Mechanical Open end stop Position (MOP) |
0.5 |
90 |
18 |
