Components Location

WARNING: This page is about a different variant/trim than selected.

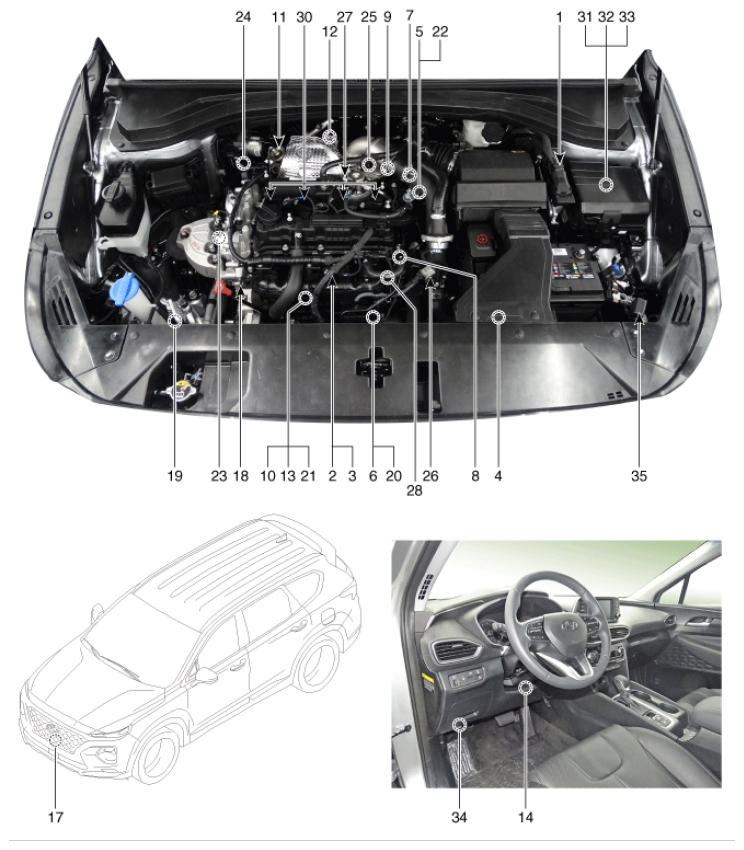

G12991882Courtesy of HYUNDAI MOTOR AMERICA

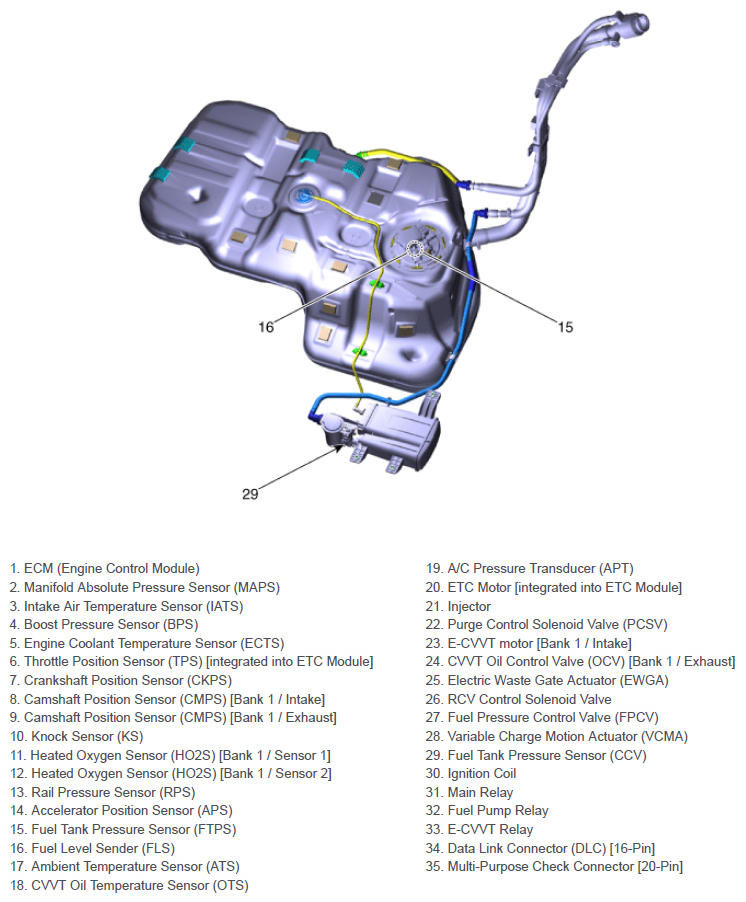

G12991883Courtesy of HYUNDAI MOTOR AMERICA

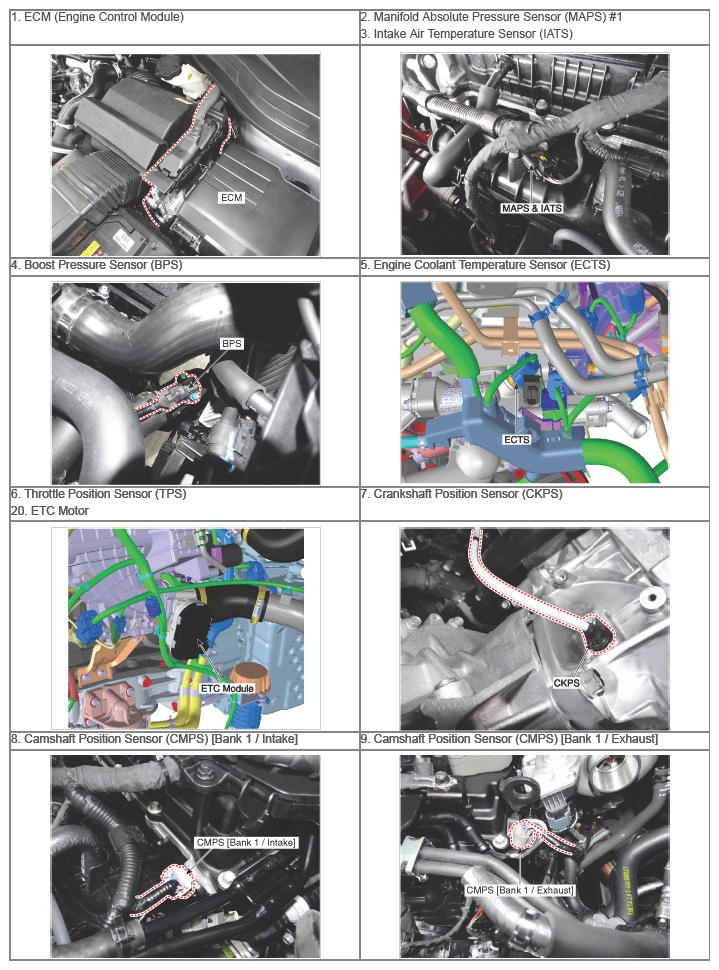

G12991884Courtesy of HYUNDAI MOTOR AMERICA

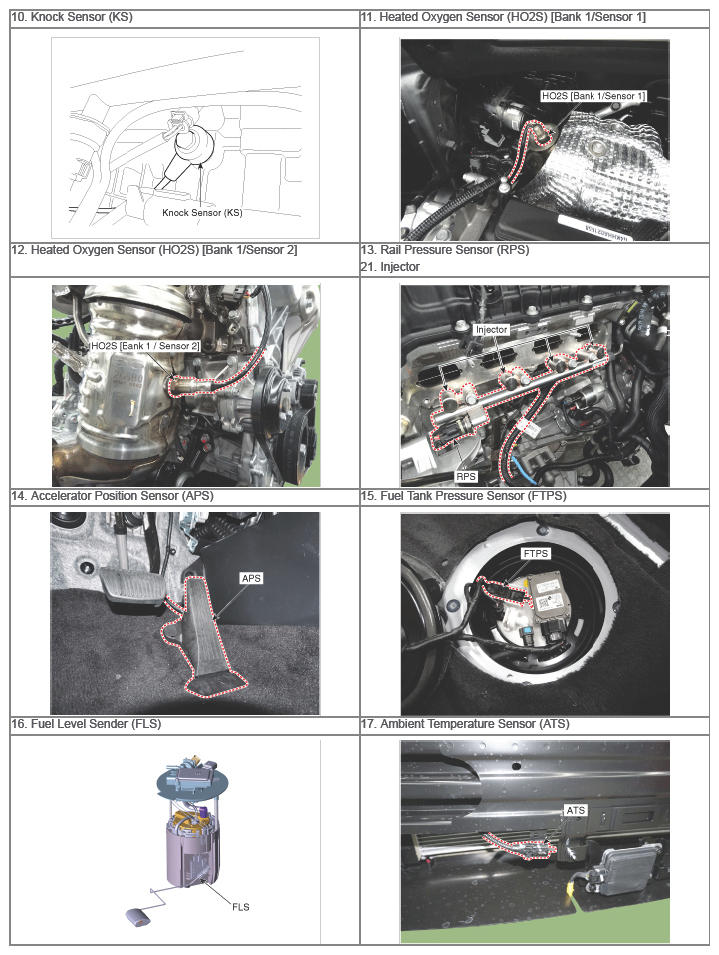

G12991885Courtesy of HYUNDAI MOTOR AMERICA

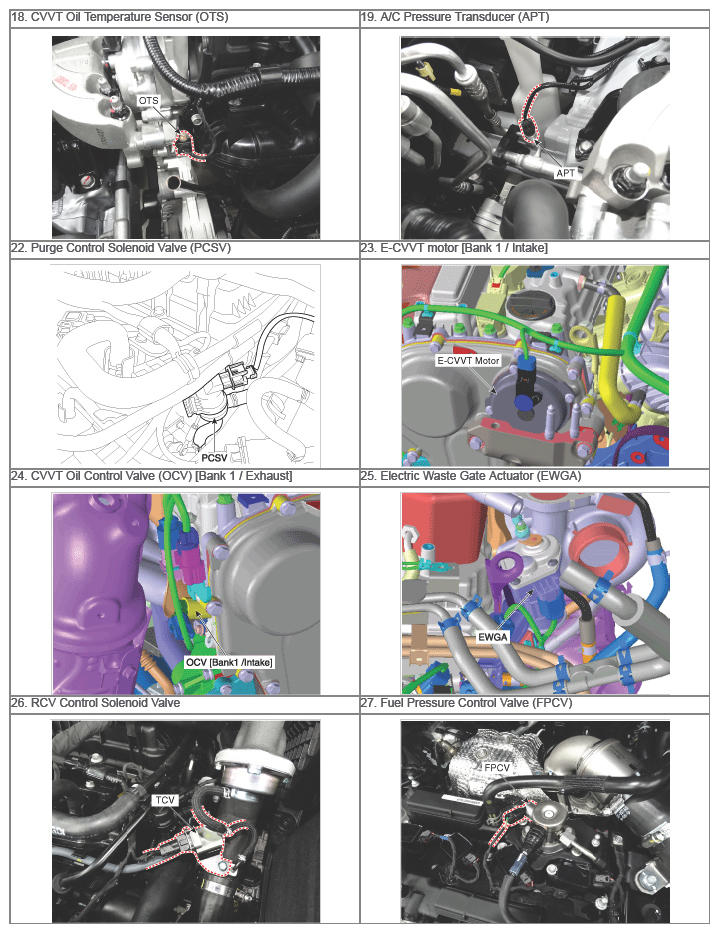

G12991886Courtesy of HYUNDAI MOTOR AMERICA

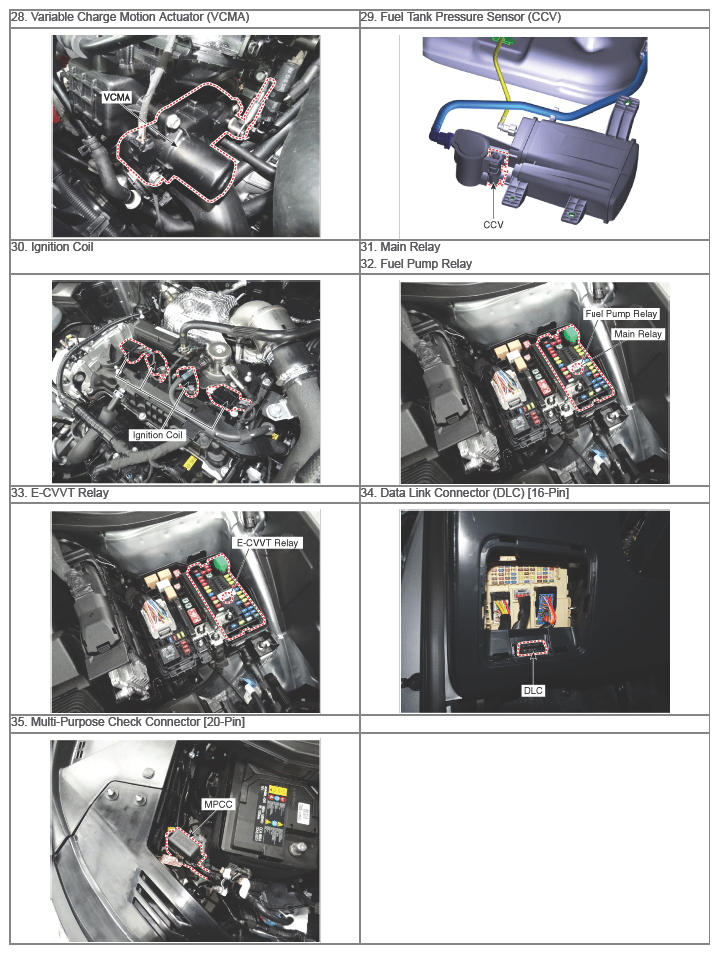

G12991887Courtesy of HYUNDAI MOTOR AMERICA
