Repair Procedures: Inspection

WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

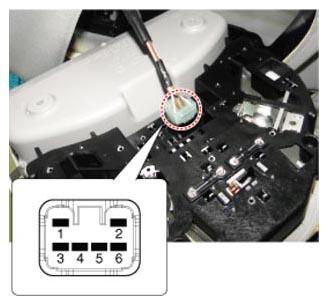

G13038036Courtesy of HYUNDAI MOTOR AMERICA

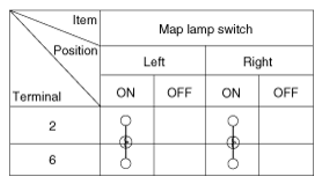

G13038037Courtesy of HYUNDAI MOTOR AMERICA
G13038038Courtesy of HYUNDAI MOTOR AMERICA
