Component Location

WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

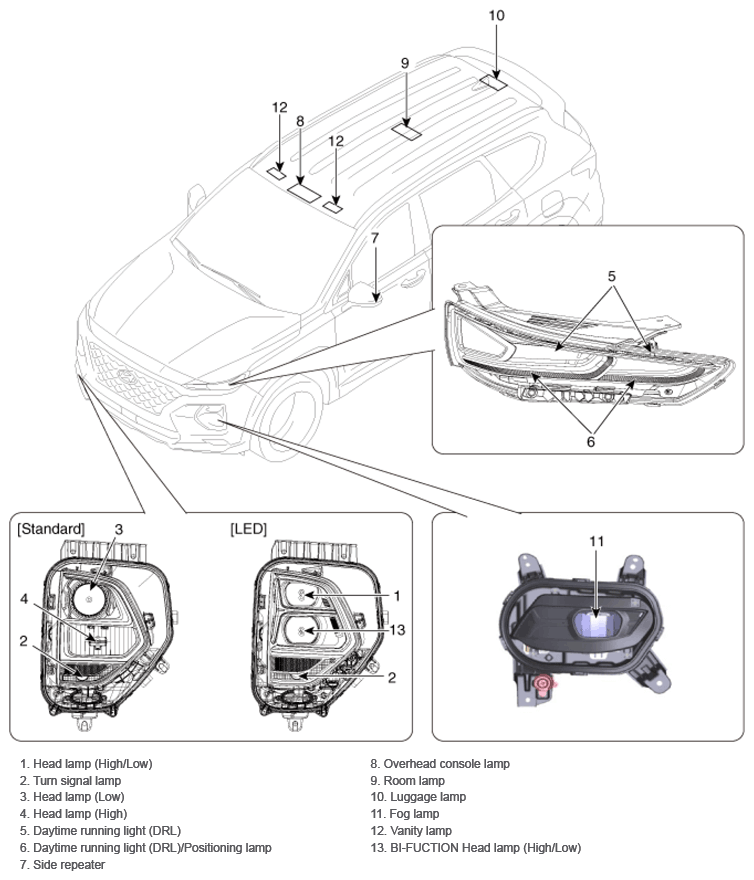

G13037996Courtesy of HYUNDAI MOTOR AMERICA

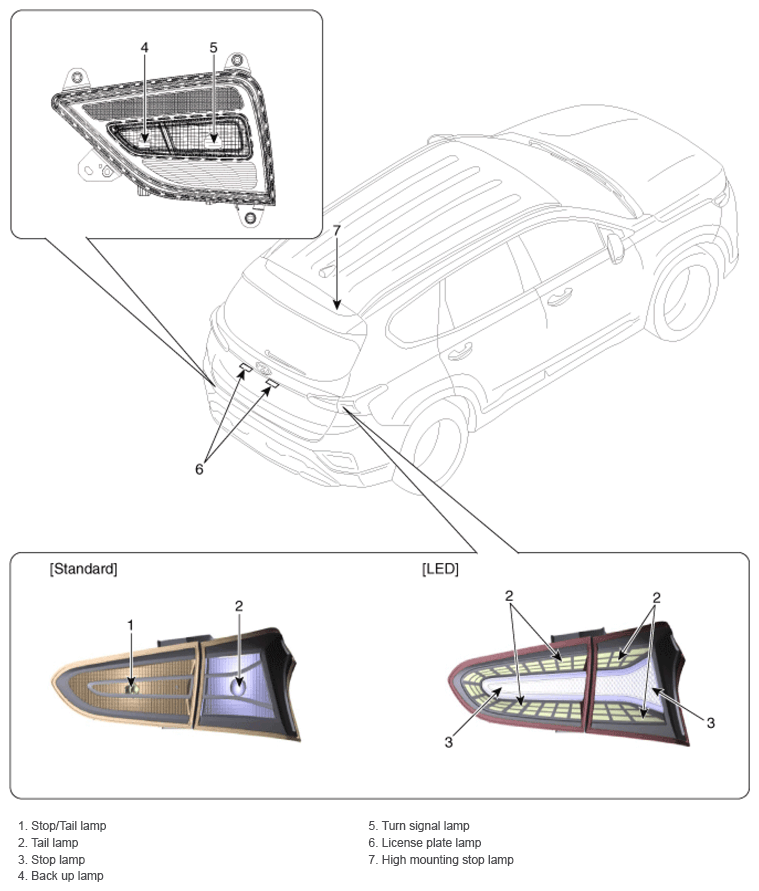

G13037997Courtesy of HYUNDAI MOTOR AMERICA
