Repair Procedures: Removal

WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not turn the ignition switch ON and do not connect the battery cable while replacing the front impact sensor.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

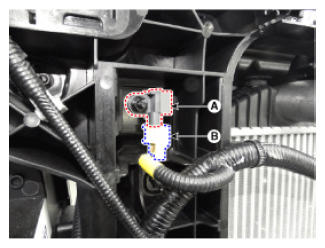

  2. Disconnect the front impact sensor connector (B) and then remove the front impact sensor (A) after loosening the mounting bolt.
G12993689Courtesy of HYUNDAI MOTOR AMERICA
