Interior 3 Antenna

WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

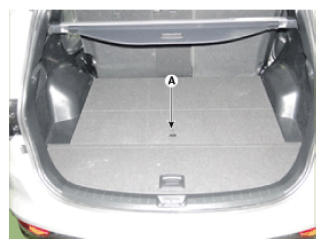

  2. Remove the luggage covering mat (A).
    G12999022Courtesy of HYUNDAI MOTOR AMERICA

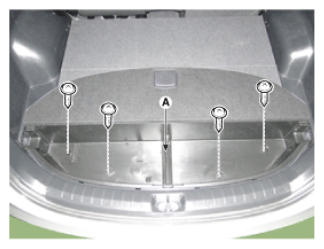

  3. Remove the luggage floor box (A) after loosening the screws (4EA).
    G12999023Courtesy of HYUNDAI MOTOR AMERICA

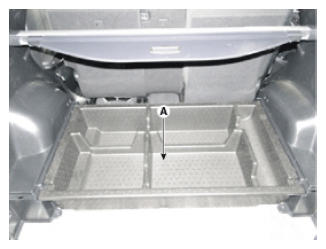

  4. Remove the luggage tray box (A).
    G12999024Courtesy of HYUNDAI MOTOR AMERICA

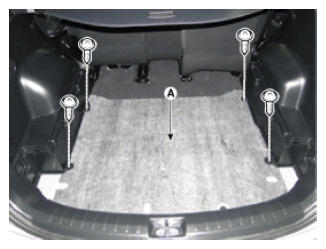

  5. Remove the floor mat (A) after loosening the screws (4EA).
    G12999025Courtesy of HYUNDAI MOTOR AMERICA

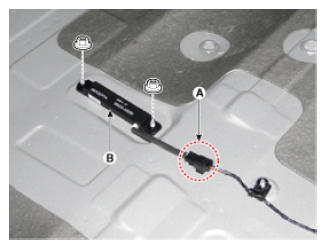

  6. Remove the interior 3 antenna (B) after loosening the mounting screws (2EA) and disconnecting the connector (A).
    G12999026Courtesy of HYUNDAI MOTOR AMERICA
