Fault Code Searching

WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fault code searching that the each linked components operates normal.
  2. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

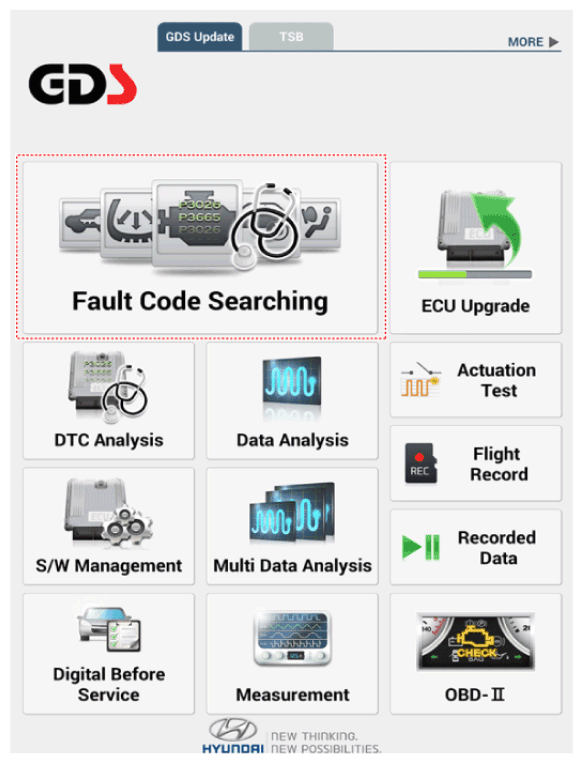

  3. Select the 'Fault Code Searching' and 'Car model'.
    G12999040Courtesy of HYUNDAI MOTOR AMERICA
