Repair Procedures: Removal

WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
  2. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  3. Remove the seat back cover.

    (Refer to Body - "FRONT SEAT BACK COVER ")

    NOTE:
    • When the front side airbag has deployed after a collision, replace the seat back as an assembly.

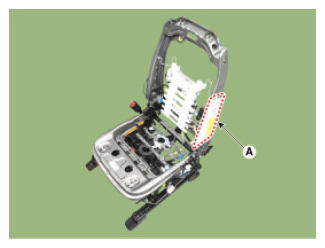

  4. Loosen the SAB mounting nuts and remove the SAB module (A).
    G12993719Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • The removed airbag module should be stored in a clean and dry place with the cushion side up.
