Monitor Current Data

  1. Ignition "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON"
  4. Monitor "Battery Voltage" and "Battery Voltage (AMS)" parameter in "Current Data" with GDS.
  5. Test Condition: Ignition "ON" or Engine "ON"

    Specification:  Refer to Figure below

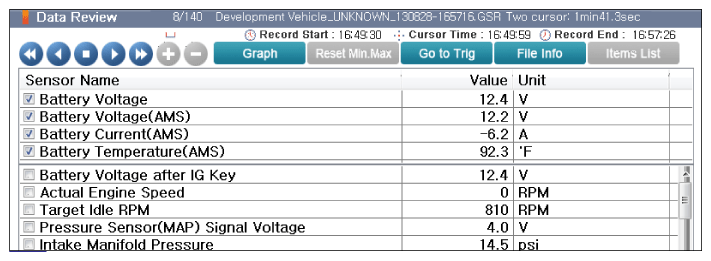

G13198013Courtesy of HYUNDAI MOTOR AMERICA

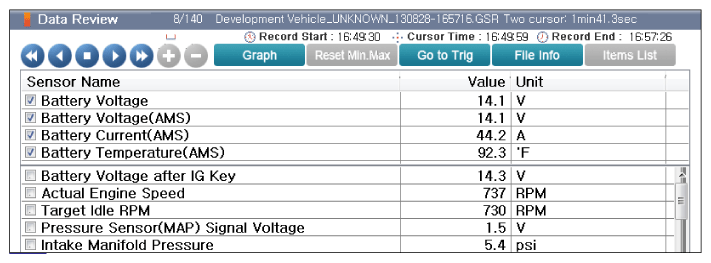

G13198014Courtesy of HYUNDAI MOTOR AMERICA
