Monitor Current Data

  1. Ignition "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON"
  4. Monitor following parameters in "Current Data" with GDS.

    Specification  : Refer to Figure below

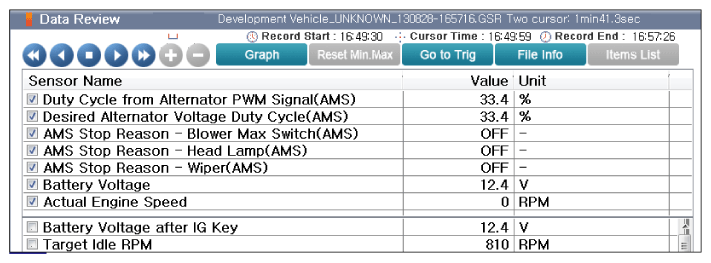

G13184119Courtesy of HYUNDAI MOTOR AMERICA

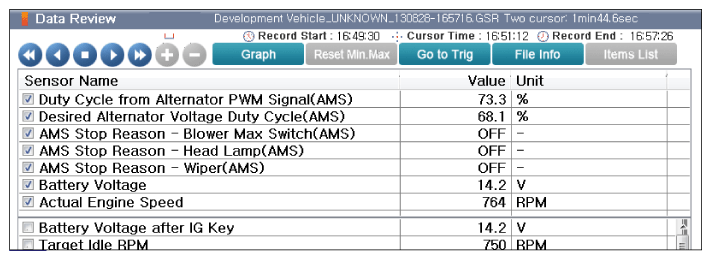

G13184120Courtesy of HYUNDAI MOTOR AMERICA

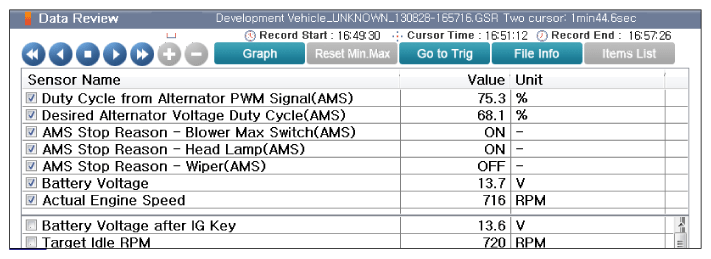

G13184121Courtesy of HYUNDAI MOTOR AMERICA
