Monitor Current Data

  1. Ignition "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON"
  4. Warm up the engine to normal operating temperature.
  5. Monitor following parameters in "Current Data" with GDS.

    Specification  : Refer to Figure below

G13183894Courtesy of HYUNDAI MOTOR AMERICA
G13183895Courtesy of HYUNDAI MOTOR AMERICA


  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & Engine "OFF"
  3. Monitor current data of "Purge Control Valve" with GDS.

    Specification:  Refer to Figure below

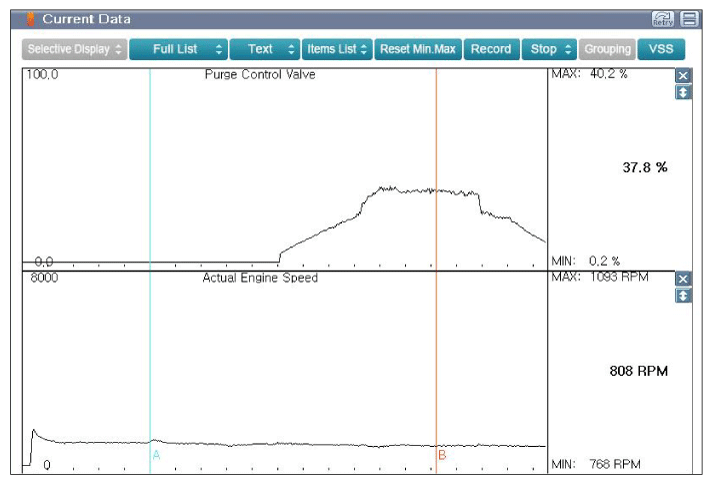

G13183921Courtesy of HYUNDAI MOTOR AMERICA
