Current Data Inspection

  1. Ignition "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON"
  4. Monitor following parameters in "Current Data" with GDS.

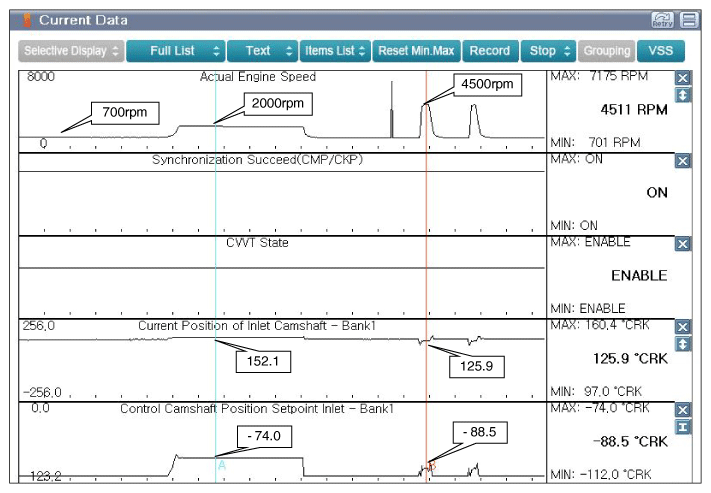

    Specification:  Refer to Figure below

G13183355Courtesy of HYUNDAI MOTOR AMERICA
