Monitor Current Data

  1. Ignition "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON"
  4. Warm up the engine to normal operating temperature.
  5. Monitor following parameters in "Current Data" with GDS.

    Specification:  Refer to Figure below

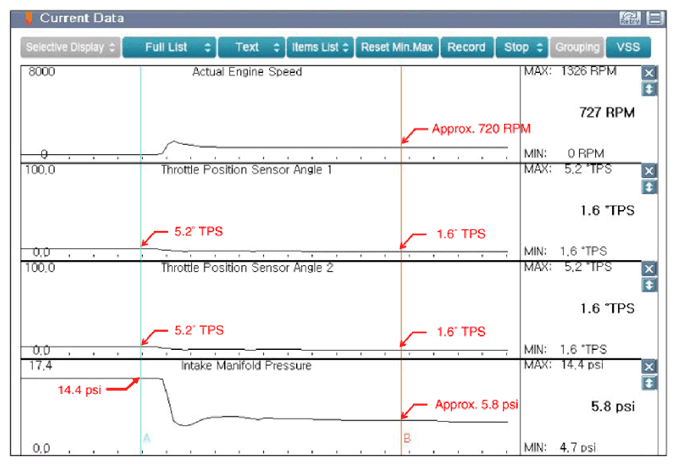

G13185648Courtesy of HYUNDAI MOTOR AMERICA

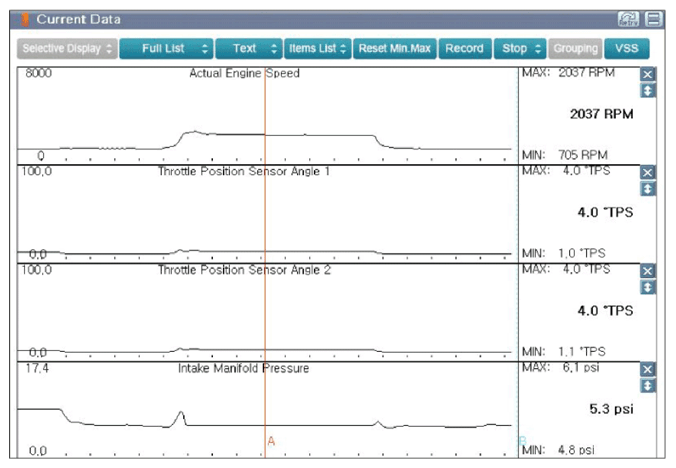

G13185649Courtesy of HYUNDAI MOTOR AMERICA
