Home >> Hyundai >> 2019 >> Santa Fe SEL Plus, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 2.4L (1 Of 3) >> DTC P0032-00: HO2S Heater Control Circuit High (Bank 1/Sensor 1) >> Troubleshooting >> Monitor Current Data >> Current Data Inspection

Current Data Inspection

  1. Ignition "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON"

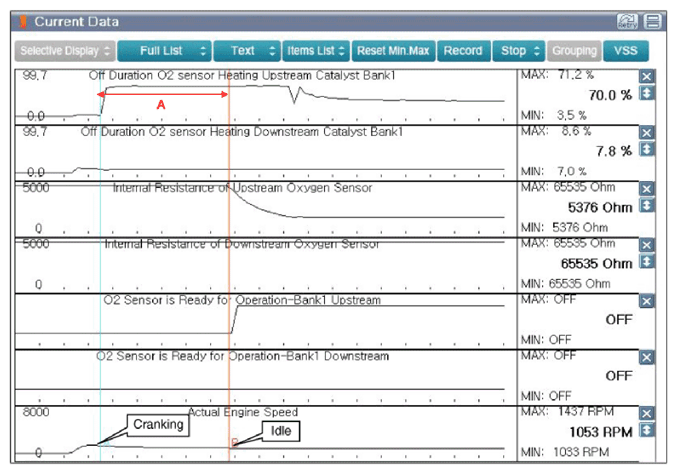

  4. Monitor following parameters in "Current Data" with GDS.
G13184620Courtesy of HYUNDAI MOTOR AMERICA
