Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD ")

  3. Disconnect the screw and then ESP OFF switch (A).
    G12996056Courtesy of HYUNDAI MOTOR AMERICA

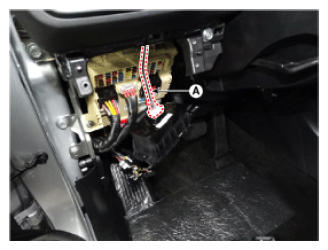

  4. Disconnect the ESP OFF switch connector (A).
    G12996057Courtesy of HYUNDAI MOTOR AMERICA
