Interior 1 Antenna

Take care not to scratch the crash pad and related parts.

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad center panel.

   (Refer to Body - "CRASH PAD CENTER PANEL ")

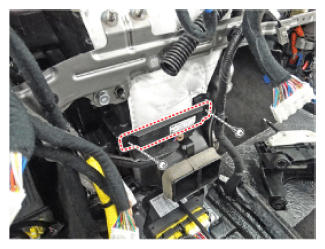

3. Remove the interior 1 antenna after loosening the mounting nuts (2EA) and disconnecting the connector.

   Courtesy of HYUNDAI MOTOR AMERICA
