Occupant Classification System (OCS) Unit

WARNING: This page is about a different car, the 2020 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the front passenger seat assembly.

    (Refer to Body - "FRONT SEAT ")

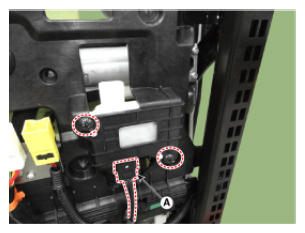

  3. Disconnect the OCS ECU connector (A) and then remove the OCS Unit after loosening the mounting screw.
G12993699Courtesy of HYUNDAI MOTOR AMERICA
