Monitor Current Data

  1. Ignition "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON"
  4. Warm up the engine to normal operating temperature.
  5. Monitor following parameters in "Current Data" with GDS.

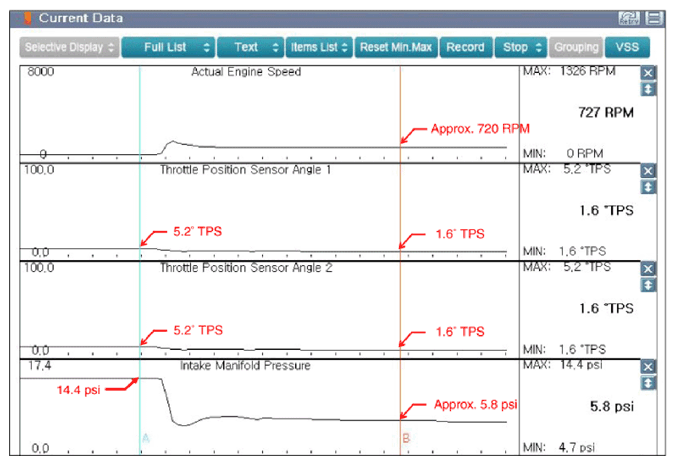

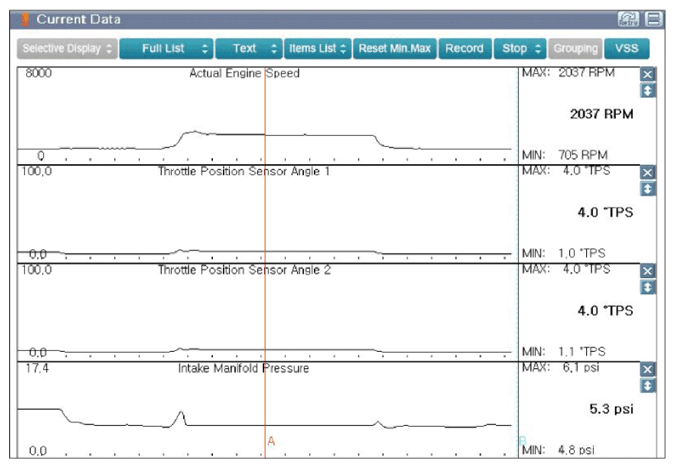

    Specification:  Refer to Figure below

G13185148Courtesy of HYUNDAI MOTOR AMERICA
G13185149Courtesy of HYUNDAI MOTOR AMERICA
