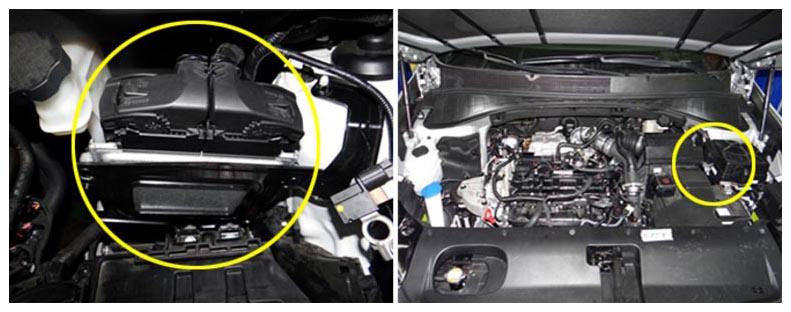

Component Location: Pcm

G13184381Courtesy of HYUNDAI MOTOR AMERICA

A malfunction is detected by using a checksum technique for verifying data. The digital data is composed of zeros and ones. A checksum is the total of all ones in a string of data. By comparing the checksum value with a stored value, a malfunction can be detected.
