Signal Waveform & Data

G12931207Courtesy of HYUNDAI MOTOR AMERICA

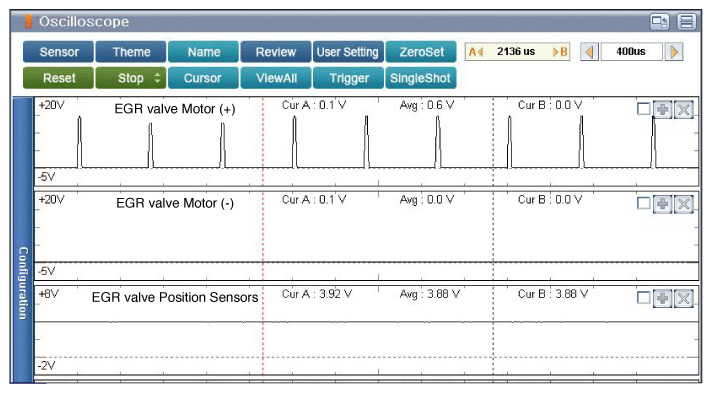

Fig.1) Normal waveform of EGR valve Motor & EGR valve Position Sensors at idle (engine "OFF")

G12931208Courtesy of HYUNDAI MOTOR AMERICA

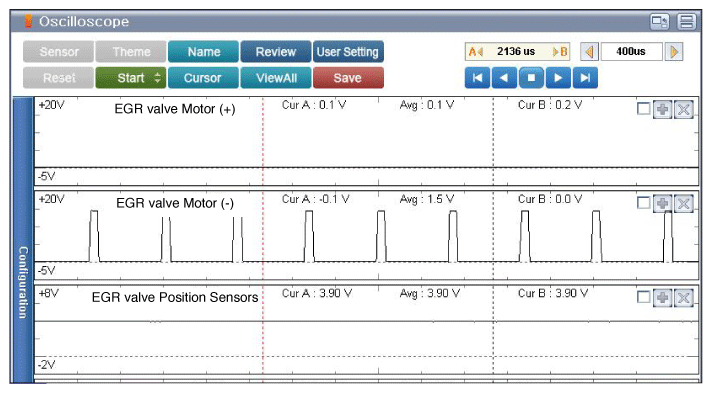

Fig.2) Normal waveform of EGR valve Motor & EGR valve Position Sensors at idle (engine "ON")
