Repair Procedures: Removal

  1. Remove the front bumper.

    (Refer to Body - "FRONT BUMPER ")

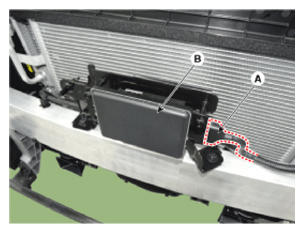

  2. Disconnect the smart cruise control unit connector (A).
  3. Remove the smart cruise control unit assembly (B) from the vehicle after loosening mounting bolts.
    G12725880Courtesy of HYUNDAI MOTOR AMERICA
