Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

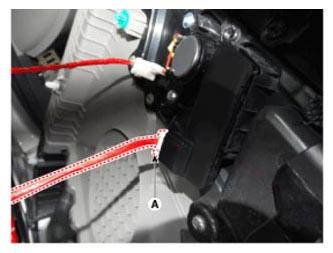

  3. Disconnect the memory power seat switch connector (A).
    G12975098Courtesy of HYUNDAI MOTOR AMERICA

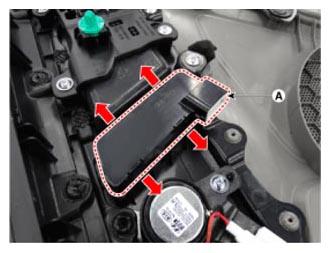

  4. Remove the memory power switch (A) after disengaging the mounting clips.
    G12975099Courtesy of HYUNDAI MOTOR AMERICA
