Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the steering wheel assembly.

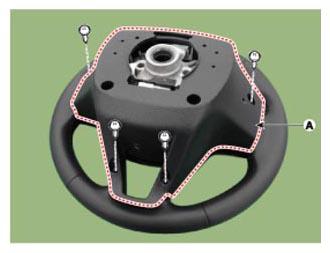

  3. Remove the screws from the steering back cover (A).
    G12971735Courtesy of HYUNDAI MOTOR AMERICA

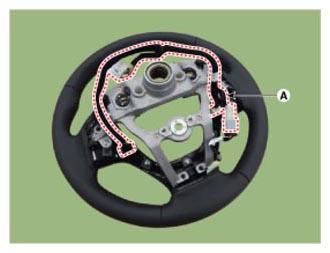

  4. Remove the steering remote control connector (A).
    G12971736Courtesy of HYUNDAI MOTOR AMERICA

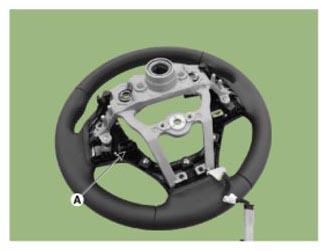

  5. Remove the steering remote control (A) after loosening the screws.
    G12971737Courtesy of HYUNDAI MOTOR AMERICA
