Trunk Lock Module Inspection

  1. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

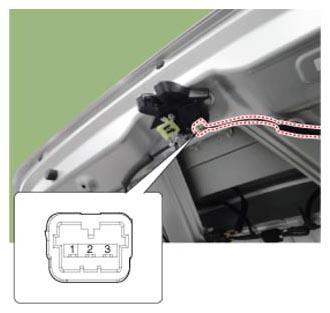

  2. Disconnect the connector from the actuator
    G12975260Courtesy of HYUNDAI MOTOR AMERICA
  3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
    G12975261Courtesy of HYUNDAI MOTOR AMERICA
    G12726183Courtesy of HYUNDAI MOTOR AMERICA
  4. Checking the trunk of the vehicle power option power refers to the trunk module.
