Home >> Hyundai >> 2019 >> Elantra GT Base >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> Front Wheel Speed Sensor >> Components And Components Location >> Components

Components And Components Location: Components

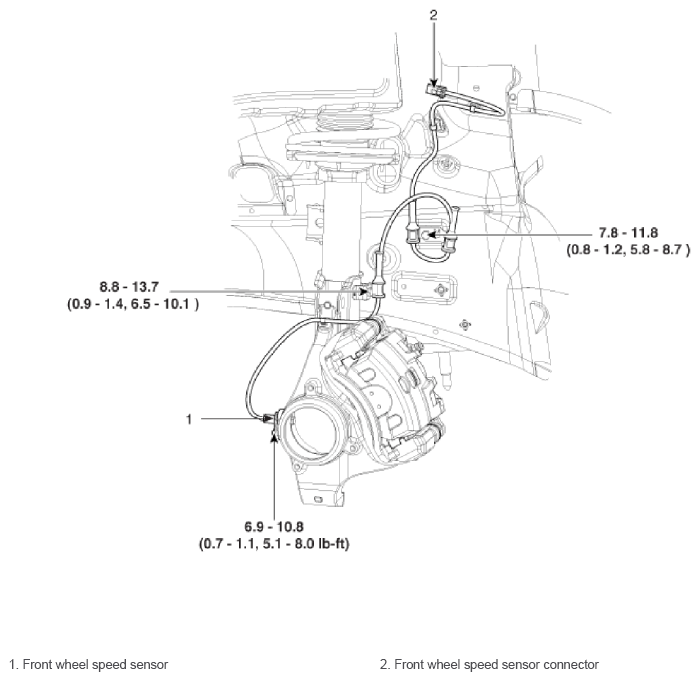

Fig 1: Front Wheel Speed Sensor Components With Torque Specification

G13032709

Courtesy of HYUNDAI MOTOR AMERICA
