Home >> Hyundai >> 2019 >> Elantra Eco >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Transmission Control System - 1.4L >> Input Shaft Speed Sensor 2 >> Components And Components Location >> Components

Components And Components Location: Components

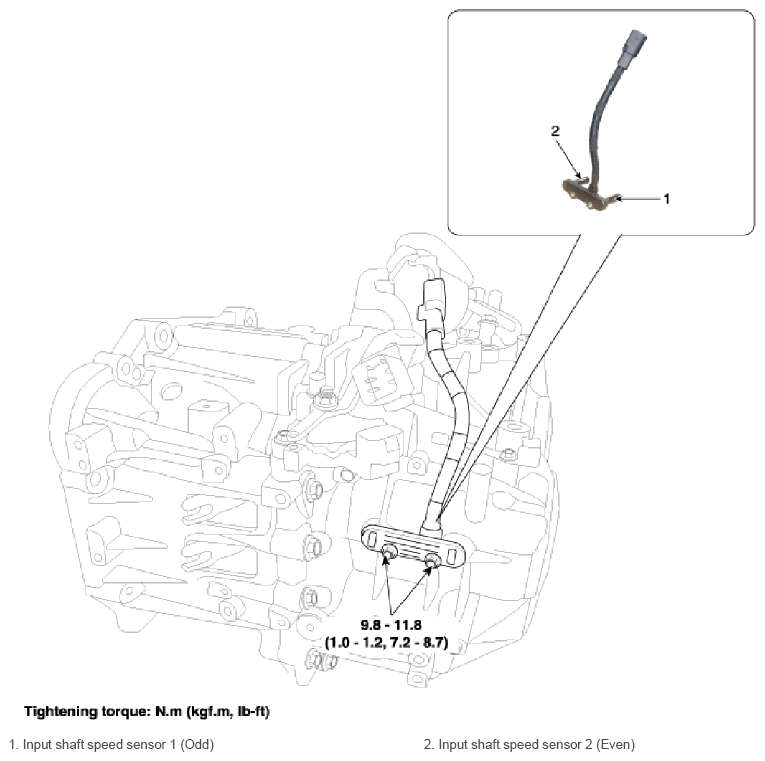

Fig 1: Locating Input Shaft Speed Sensor 2 Components With Torque Specification

G12977471

Courtesy of HYUNDAI MOTOR AMERICA
