Dual Clutch Transmission Control System - 1.4L
>>
Inhibitor Switch
>>
Repair Procedures
>>
Inspection
>>

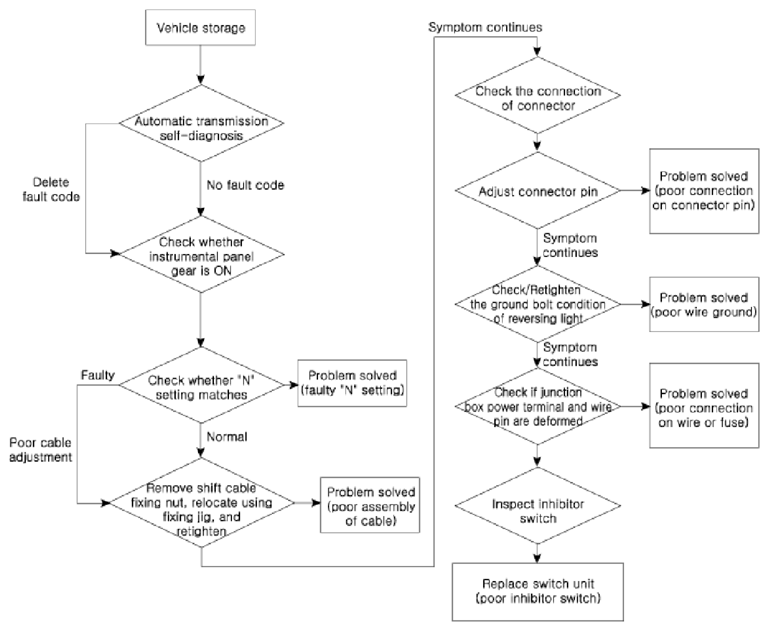

Inspection Flow
Inspection Flow
Courtesy of HYUNDAI MOTOR AMERICA
