Components And Components Location: Components

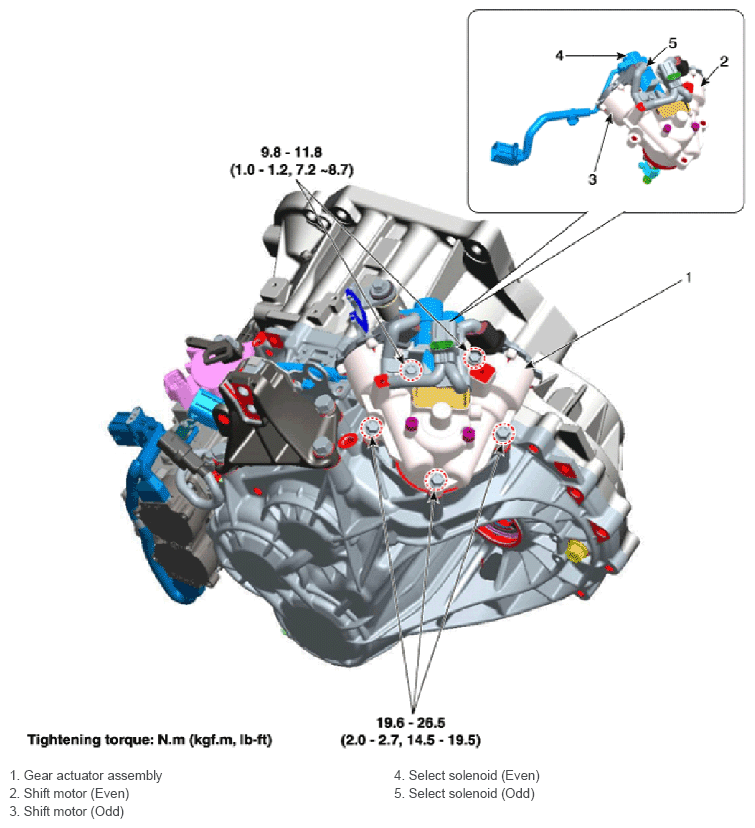

Fig 1: Locating Gear Actuator Assembly Components With Torque Specification

G12977454

Courtesy of HYUNDAI MOTOR AMERICA
