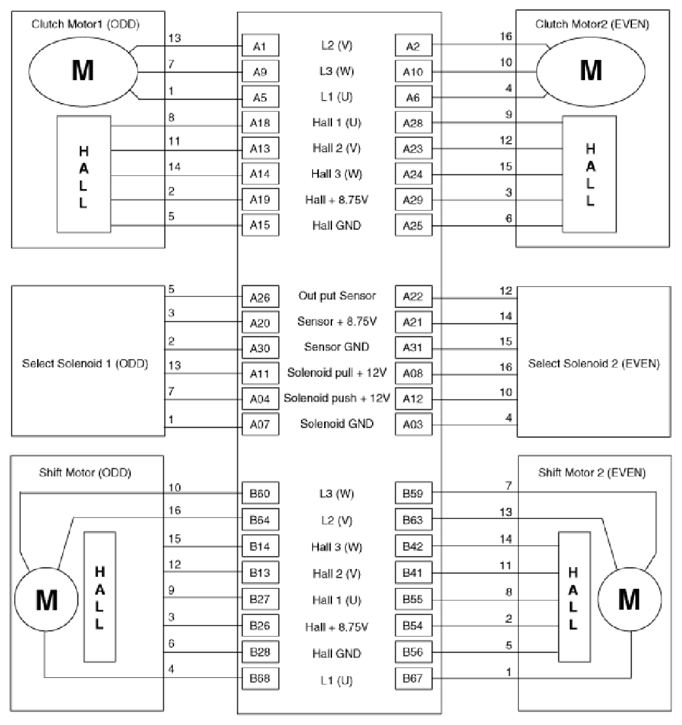

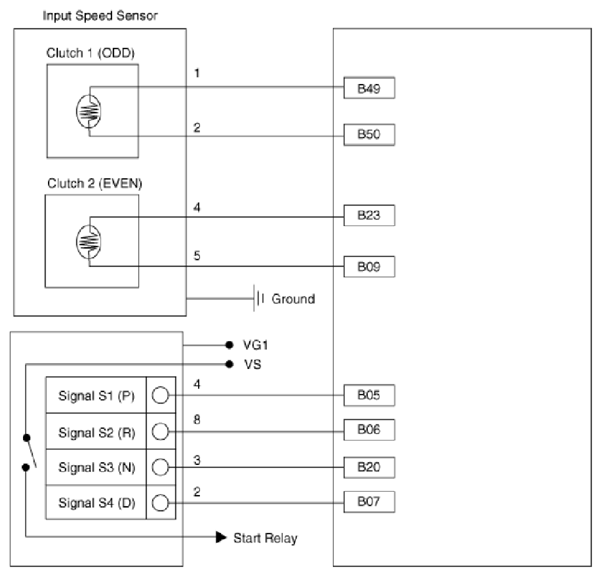

Home >> Hyundai >> 2019 >> Elantra Eco >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Transmission Control System - 1.4L >> DCT Control Module (TCM) >> Schematic Diagrams >> Circuit Diagram
