Removal And Installation

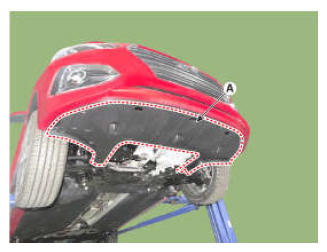

  1. Remove the engine room under cover (A).

    Tightening Torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft

    G12594113Courtesy of HYUNDAI MOTOR AMERICA
  2. Install in the reverse order of removal.
