Home >> Hyundai >> 2019 >> Accent SE, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Schematic Diagrams >> Circuit Diagram >> Main Power Window Switch (Front, Driver Auto Down)

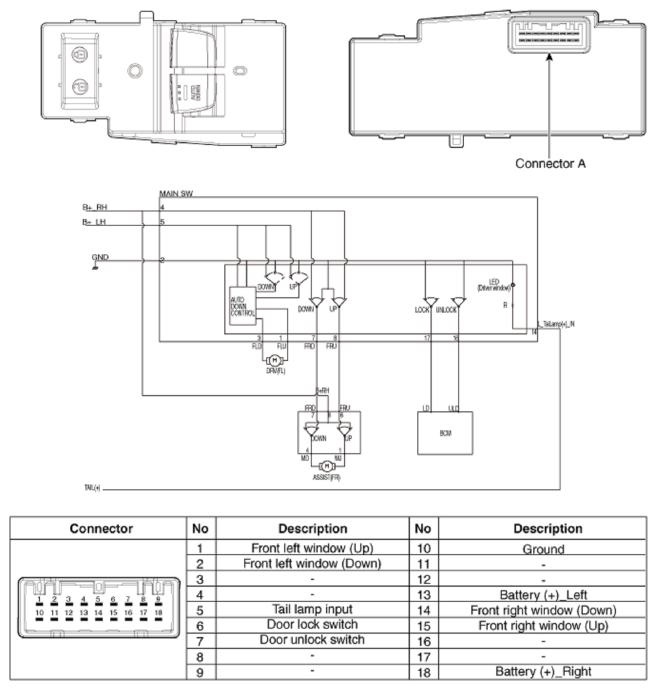

Main Power Window Switch (Front, Driver Auto Down)

G12597760

Courtesy of HYUNDAI MOTOR AMERICA
