Home >> Hyundai >> 2018 >> Tucson Value, FWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Transmission Control System - 1.6L >> Shift Lever >> Components and Components Location >> Components (1)

Components (1)

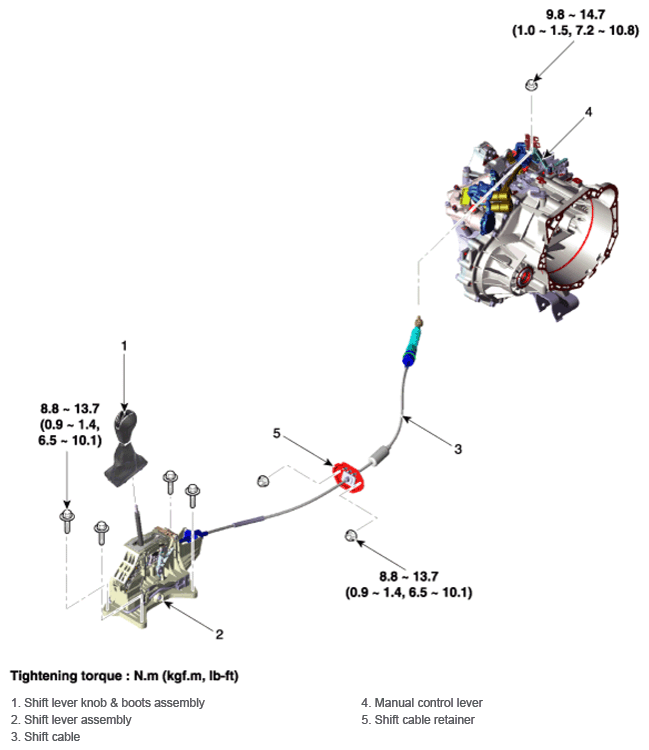

Fig 1: Shift Lever Components With Torque Specification (1)

G12609294

Courtesy of HYUNDAI MOTOR AMERICA
