Repair Procedures: Removal

  1. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  2. Remove the TCM.

    (Refer to Dual Clutch Transmission Control System - "DCT Control Module (TCM) ")

  3. Remove the battery and tray.

    (Refer to Engine Electrical System - "BATTERY ")

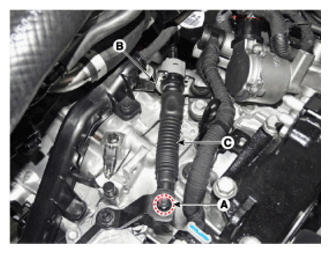

  4. Remove the shift cable (C) from the bracket (B) after loosening the nut (A).
    G12609312Courtesy of HYUNDAI MOTOR AMERICA

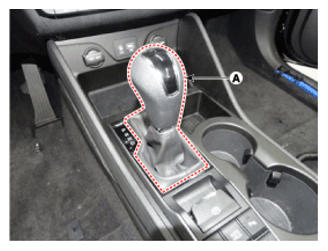

  5. Remove the shift lever knob & boots (A).
    G12609313Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

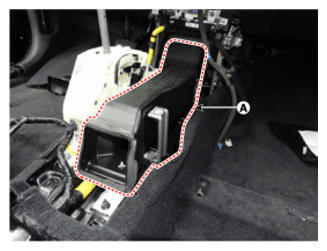

  7. Remove the air duct (A).
    G12609314Courtesy of HYUNDAI MOTOR AMERICA

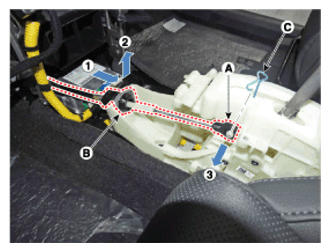

  8. Disconnect the shift cable.
    1. Disconnect the cable holder (A) from the shift lever, after removing the snap pin (C).
    2. Disconnect the cable bracket (B) from the shift lever after pushing the lock.
      G12609315Courtesy of HYUNDAI MOTOR AMERICA

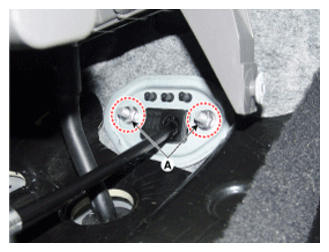

  9. Remove the retainer by loosening the nuts (A).
  10. Remove the shift cable from the vehicle.
    G12609316Courtesy of HYUNDAI MOTOR AMERICA
