Mode Change (Power Liftgate System)

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

After replacing with a new power liftgate module, check for DTC code at all times.
If DTC code B24B0 exists, perform power liftgate mode change.
After connecting the GDS, select the "Power Liftgate Mode Change" procedure.

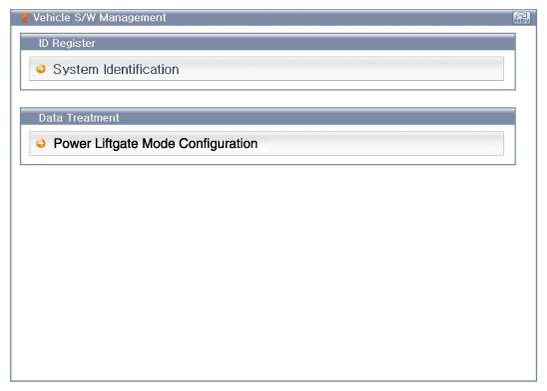

Fig 1: Screen Display - Vehicle S/W Management
Courtesy of HYUNDAI MOTOR AMERICA
Perform the liftgate mode change procedure according to displayed messages on GDS.

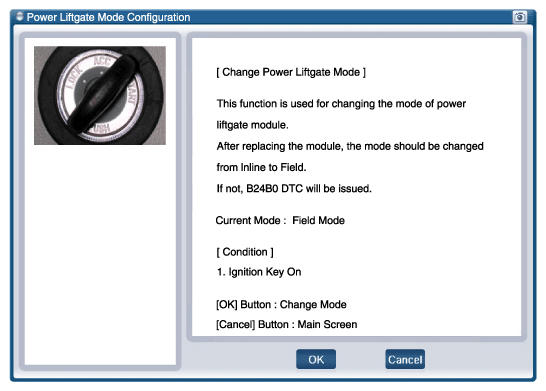

Fig 2: Screen Display - Power Liftgate Mode Configuration

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

If power liftgate system is operated with factory mode, it makes the abnormal warning sound.
