Circuit Diagram

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

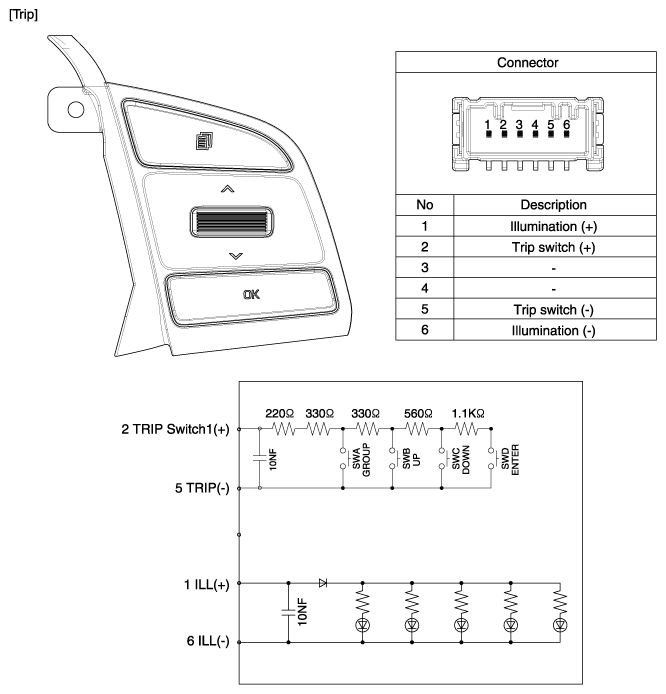

Fig 1: AVN Remote Controller Circuit (1 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

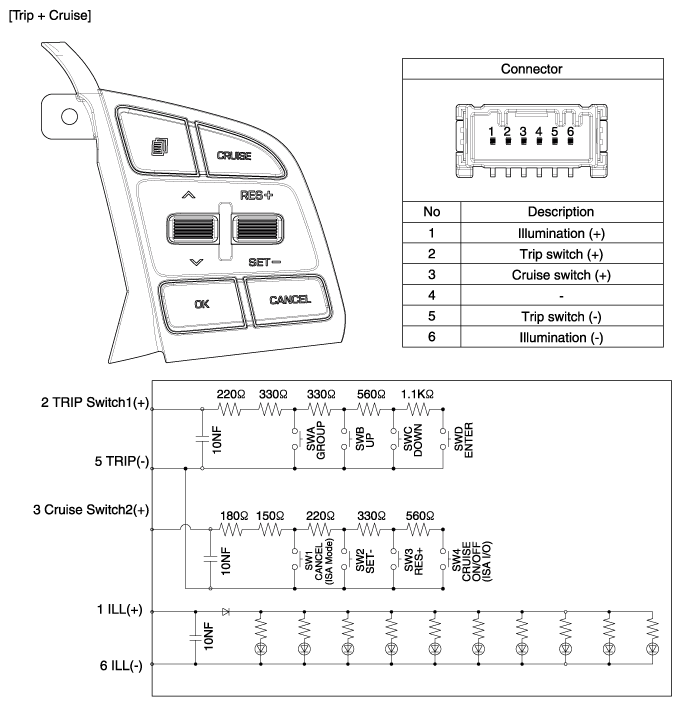

Fig 2: AVN Remote Controller Circuit (2 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

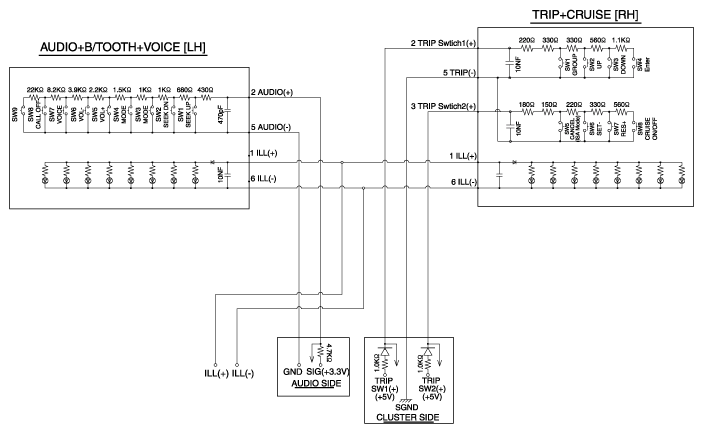

Fig 3: AVN Remote Controller Circuit (3 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

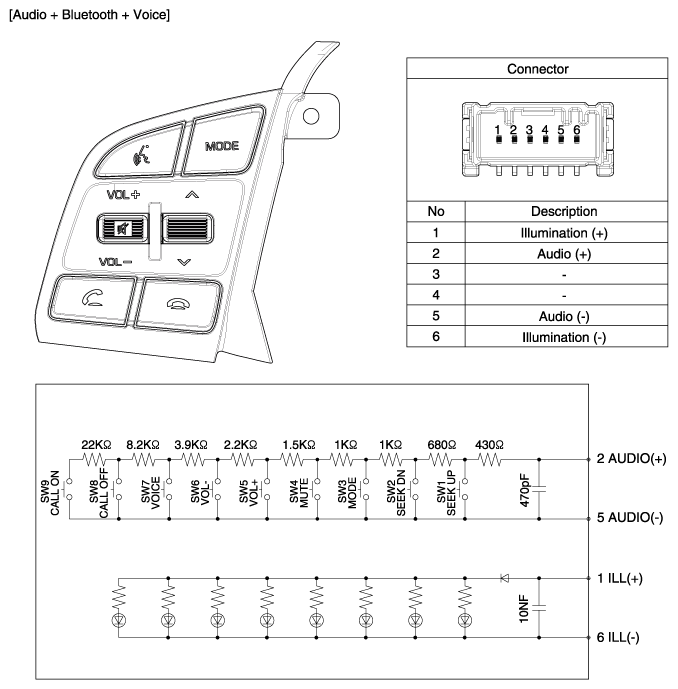

Fig 4: AVN Remote Controller Circuit (4 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA
