Signal Waveform & Data

G12613391

Courtesy of HYUNDAI MOTOR AMERICA

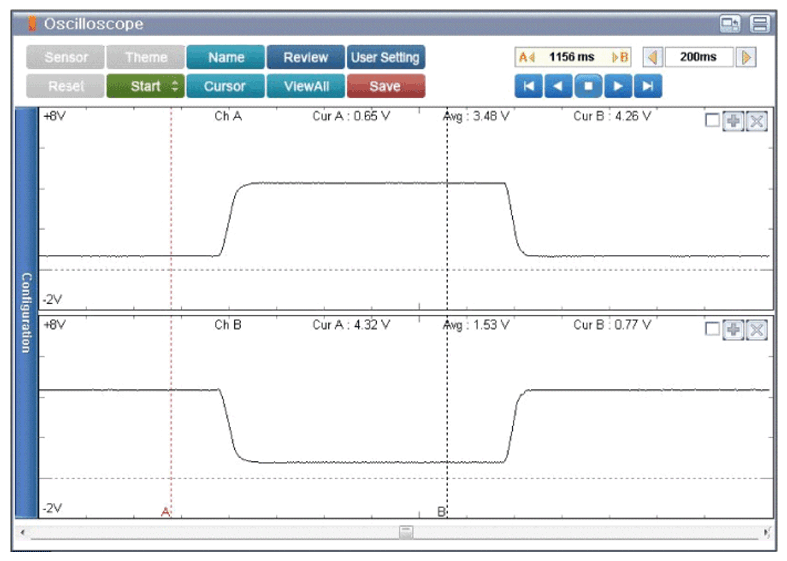

Fig.1) Normal waveform of TPS1 & TPS2 with no accel pedal depressed under IG ON condition
