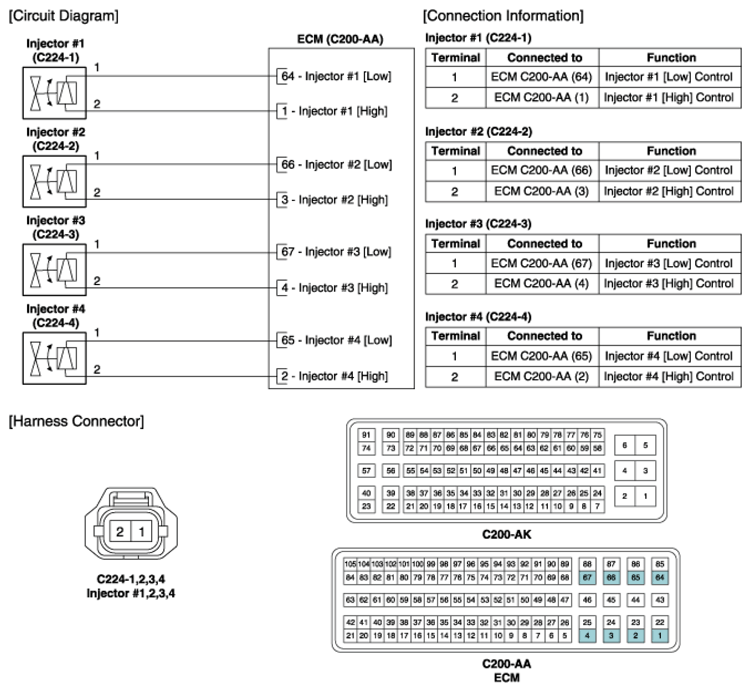

Home >> Hyundai >> 2018 >> Tucson SEL Plus, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Injector >> Schematic Diagrams >> Circuit Diagram
