Signal Waveform & Data

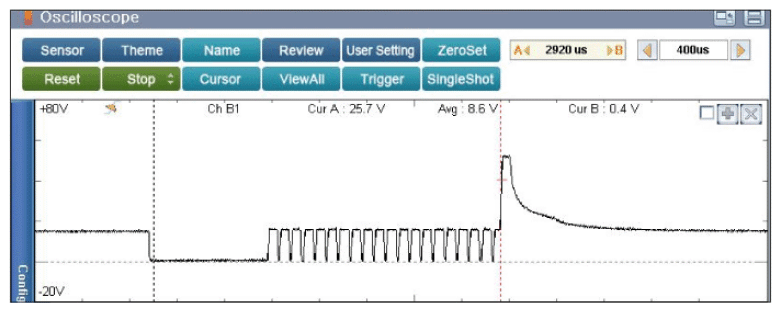

G12802268Courtesy of HYUNDAI MOTOR AMERICA

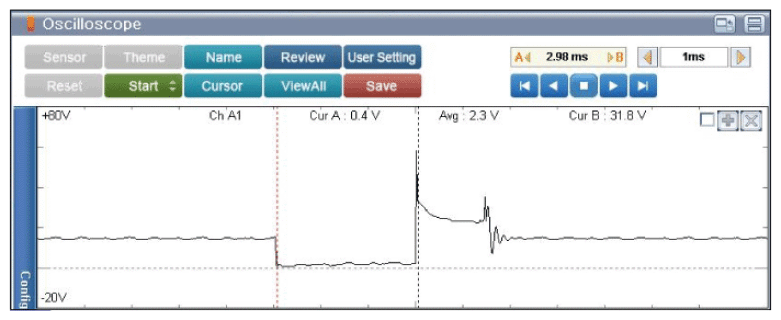

G12802269Courtesy of HYUNDAI MOTOR AMERICA

Injector peak voltage: approx. 54V

A~B sector (fuel injection): approx. 2920us (2.92ms)

Injector peak voltage: approx. 54V

A~B sector: 2.98ms
